Built for Simple, Clean PWC Storage
If you store a jet ski or personal watercraft in the water, you already know the tradeoff: marine growth, extra cleaning, long-term exposure, and more wear on the machine.
A Swinger® Lift solves that problem by lifting your PWC completely out of the water while keeping it easy to access from the dock.
Instead of reaching over the water or trying to work around a bulky lift, the Swinger® design lets you rotate the watercraft toward the dock for easier loading, unloading, washing, and everyday use.
It is a compact, practical lift built around how people actually use their waterfront.
Quick Overview
Best for: Jet skis, PWCs, kayaks, and compact watercraft
Capacity: Up to 1,500 lbs
Mounting options: Single piling or seawall mount
Key feature: Rotates up to 180° toward the dock
Common use: Easy PWC access, storage, cleaning, and launching
Best fit: Residential docks, tight layouts, and waterfronts with limited space
How the Swinger® Lift Works
The Swinger® Lift uses a cable-driven, single pile-mounted system to raise and lower your personal watercraft.
Once lifted, the system can rotate up to 180 degrees toward the dock, giving you better access for boarding, cleaning, covering, and storage. The lift is available in stationary and rotating models, giving homeowners flexibility based on dock layout and access needs.
When the lift is raised, the components stay out of the water, helping protect the system from corrosion and damage over time.
Key Features
180° Rotational Design Rotates your PWC toward the dock for easier loading, unloading, cleaning, and storage. | Compact Single-Piling Mount A space-efficient design that works well for residential docks, narrow slips, and tight waterfront layouts. |
1,500 lb Capacity Designed for jet skis, kayaks, and personal watercraft up to 1,500 lbs. | Direct-Drive System Provides dependable lifting performance with a simple, practical drive setup. |
Aluminum & Stainless Steel Construction Built for coastal environments using durable materials designed for long-term waterfront use. | Stainless Steel Lifting Cable Uses stainless steel cable for smooth, reliable lifting performance. The engineering sheet specifies 1/4" diameter stainless steel double-pull cable. |
Fully Adjustable Cradle Helps support proper PWC positioning and fit. | Mounting Flexibility Available in piling mount and seawall mount configurations. |
WHAT SETS THIS DESIGN APART
Most PWC lifts simply raise your watercraft out of the water.
The Swinger® Lift does more.
By combining vertical lifting with dockside rotation, it gives you easier access to your PWC without requiring a large lift footprint. That makes it especially useful for homeowners who want convenient storage but do not have the space, layout, or need for a larger multi-piling system.
For jet ski owners, the benefit is simple: easier access, cleaner storage, and less hassle every time you head to the water.
Technical Specifications
Swinger Lift Technical Specifications
The Swinger® Lift uses a vertical mast and rotating arm system mounted to a single piling or seawall structure, allowing the lift to raise and rotate your PWC for easier dockside access.
Scroll sideways to view all specifications.
| Capacity | Motor | Arm Length | Cable | Minimum Piling |
|---|---|---|---|---|
| 1,500 lb. | 1 H.P. | 66 in. | 1/4 in. stainless steel Double-pull cable configuration | 10 in. diameter |
Helpful context: The 1,500 lb. Swinger® Lift is designed for compact watercraft applications, using a single-piling or seawall-mounted rotating arm system for easier dockside access.
Engineering note: Your PWC should be properly positioned on the lift, with weight distributed evenly and as close to the lifting cable as practical. A local Tide Tamer dealer can help confirm the right setup for your watercraft and mounting location.
RESOURCES
Benefits of a Swinger® Lift
Rotates your PWC toward the dock for easier access
Keeps your jet ski or watercraft out of the water between uses
Helps reduce marine growth, corrosion, and cleaning time
Works well in compact or limited-space dock layouts
Available in rotating and stationary configurations
Designed specifically for PWCs, jet skis, and kayaks
Helps make launching, storing, and maintenance simpler
Keeps lift components out of the water when raised

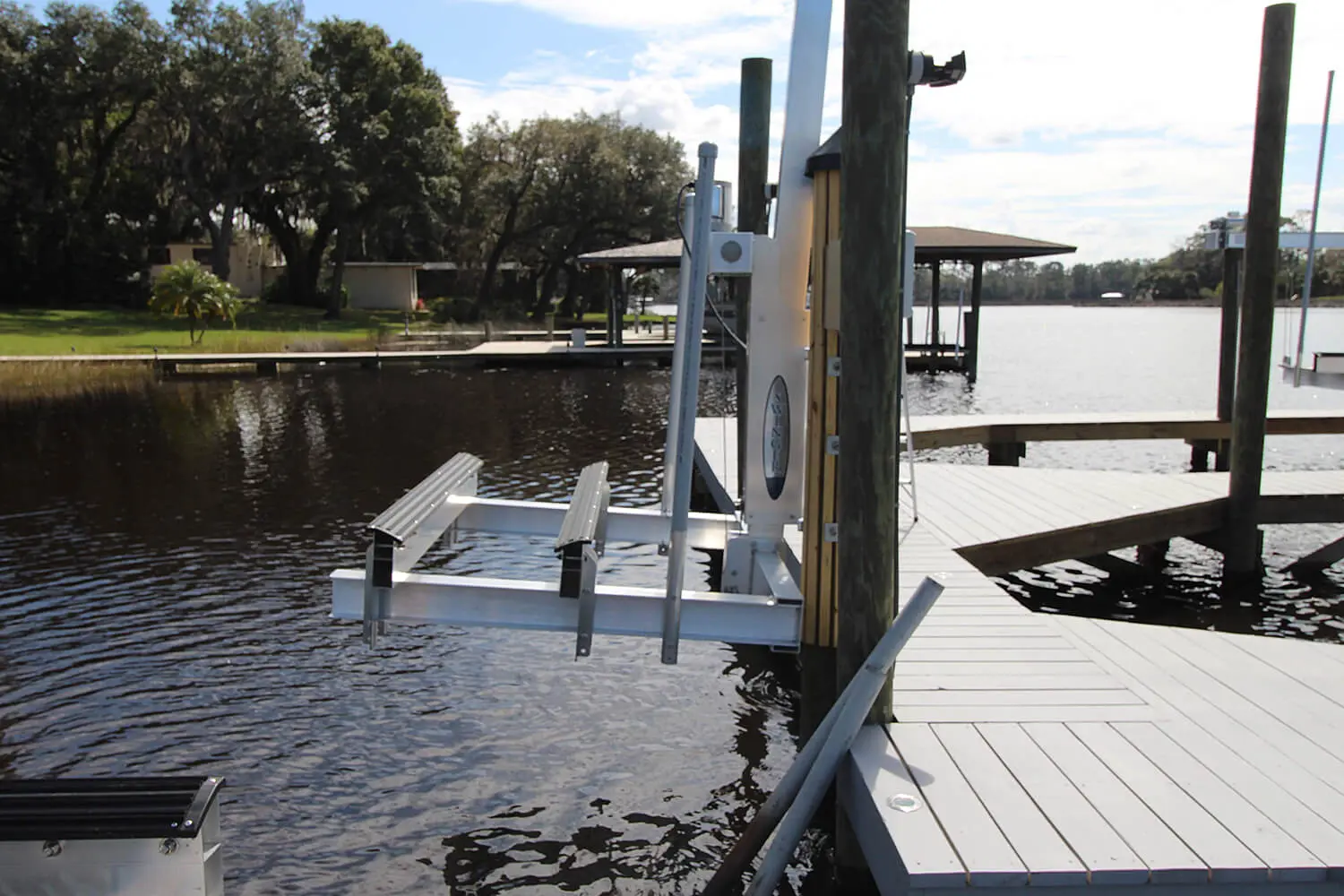

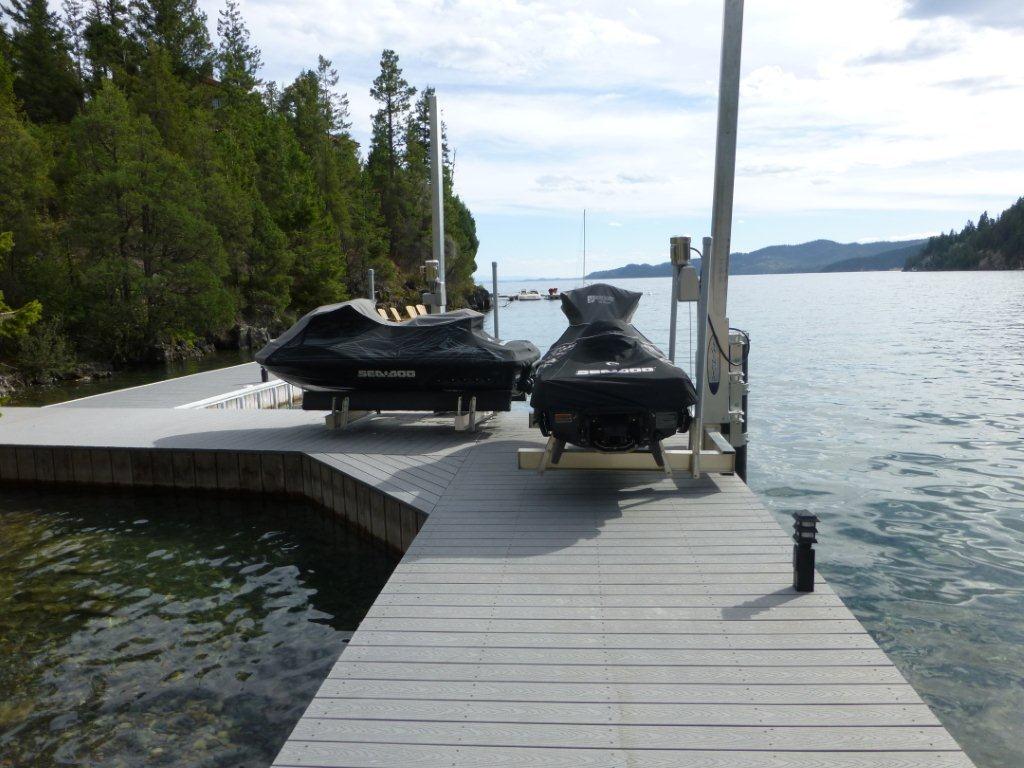

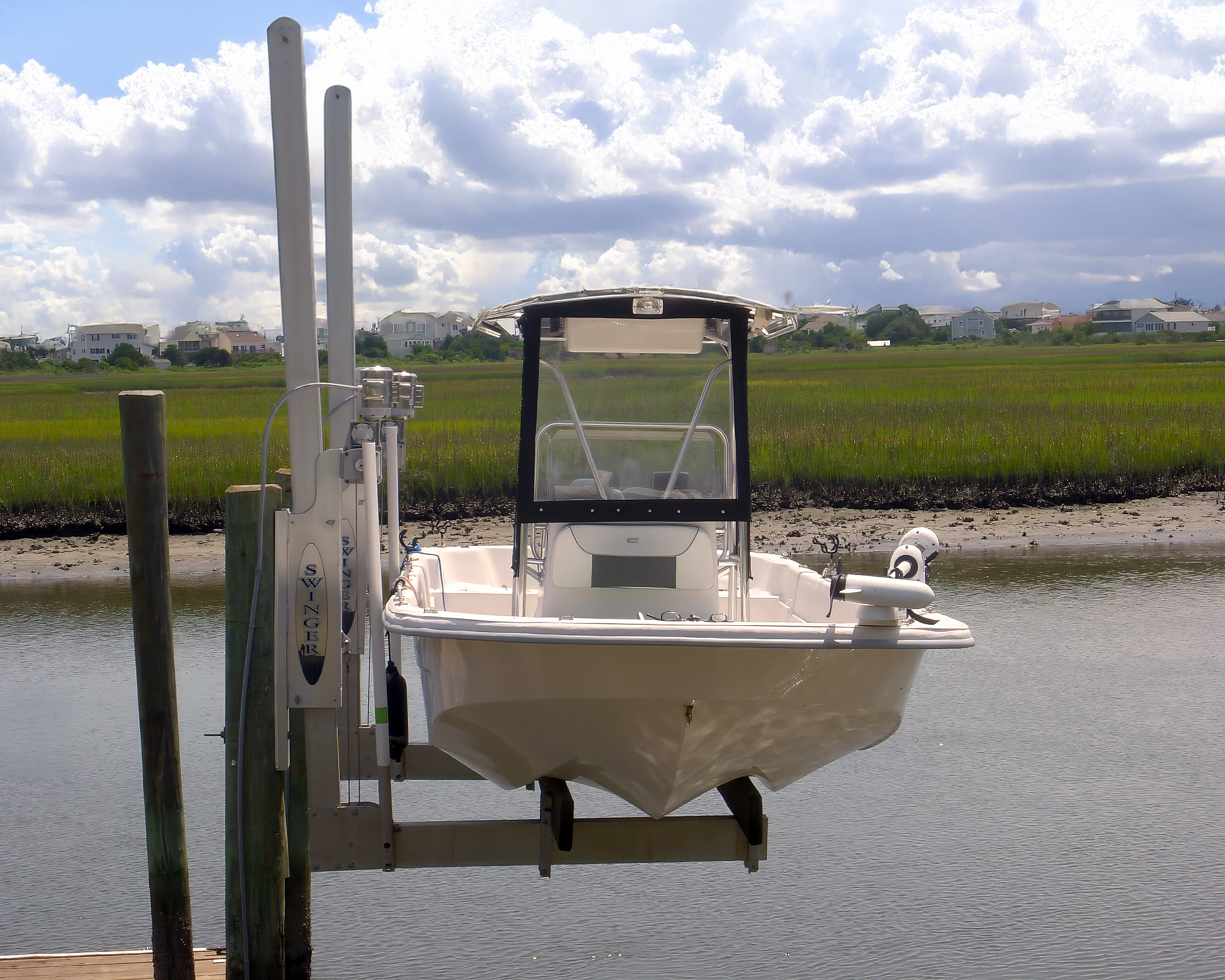

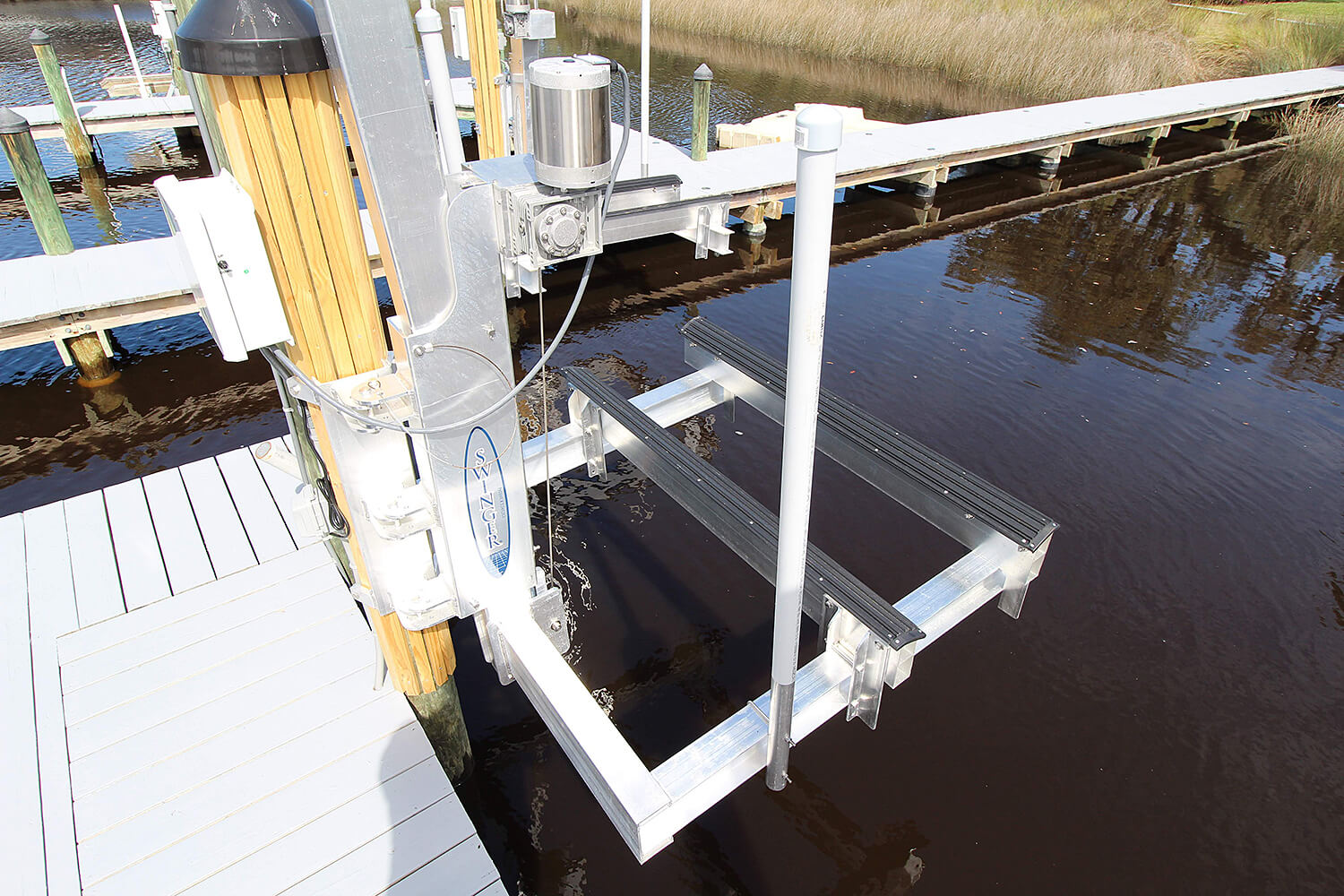

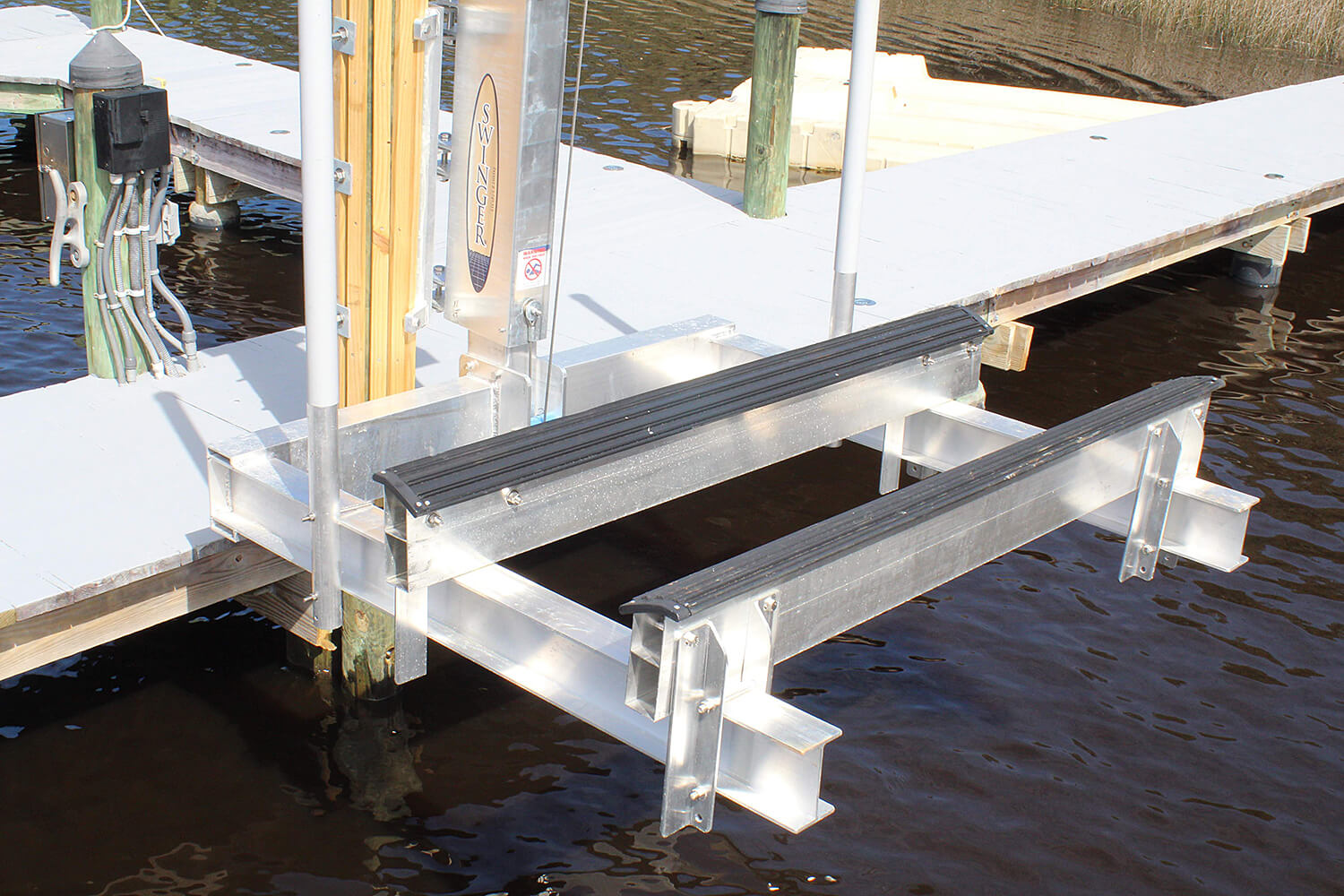

GALLERY
IS THIS THE RIGHT LIFT FOR YOU?
A Swinger® Lift May Be Right If You:
Own a jet ski, kayak, or personal watercraft
Want easier dockside access
Have limited dock space
Want to keep your PWC out of the water
Prefer a compact single-piling lift
Want a lift that can rotate toward the dock
Need a practical solution for residential waterfront use
A Swinger® Lift May Not Be the Best Fit If You:
Have a larger boat or vessel
Need more than 1,500 lbs of lift capacity
Need a multi-piling boat lift system
Want a platform-style system for multiple watercraft
Have a dock or piling layout that cannot support the required mount
